Semi Auto – Single Station
Semi Auto – Single Station Details

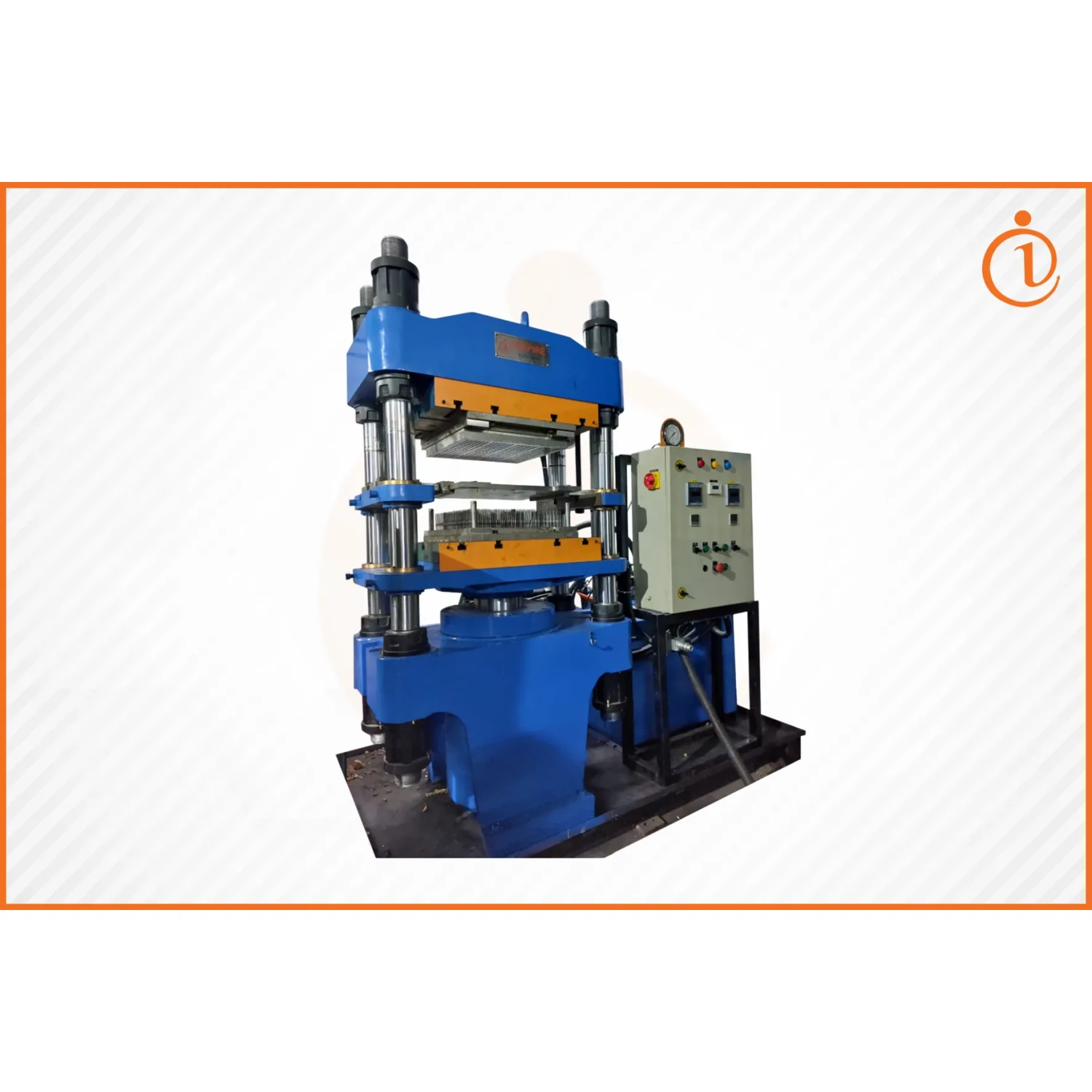

Semi Auto Rubber Molding
At Inspire Engineers, we take pride in offering semi-automatic rubber molding machines designed to balance performance, flexibility, and efficiency. These machines are built to meet medium- to high-volume production demands, providing superior control over pressure, temperature, and timing while minimizing labor dependency. Unlike fully manual systems, semi-automatic machines reduce operator fatigue and ensure consistent output with enhanced repeatability.
INSPIRE values their customer and hence depending up on the product requirement or customer need we manufacture all range of rubber molding machineries.
Specifications Of Semi Auto Rubber Molding
| Sr. No. | Description | 1 | 2 | 3 | 4 | 5 | 6 | 7 | |
| 1 | Capacity | TON | 60 | 80 | 100 | 150 | 200 | 250 | 300 |
| 2 | Table Size | MM | 350*350 | 400*400 | 400*400 | 500*500 | 600*600 | 750*750 | 900*900 |
| 3 | Daylight Gap | MM | 350 | 350 | 350 | 350 | 350 | 350 | 400 |
| 4 | Cylinder Stock | MM | 300 | 300 | 300 | 300 | 300 | 300 | 350 |
| 5 | Electric Motor | HP | 3 | 3 | 5 | 5 | 7.5 | 7.5 | 10 |
| 6 | Heater Load | KW | 6 | 7.5 | 7.5 | 9 | 12 | 18 | 24 |
| 7 | Total Load | KW | 9 | 10 | 12 | 13 | 17 | 24 | 32 |
Related Products
Vacuum Type Rubber Molding
Vacuum Type Rubber Molding The vacuum chamber is most suitable for manufacturing products like oil Seals, Beari... Continue

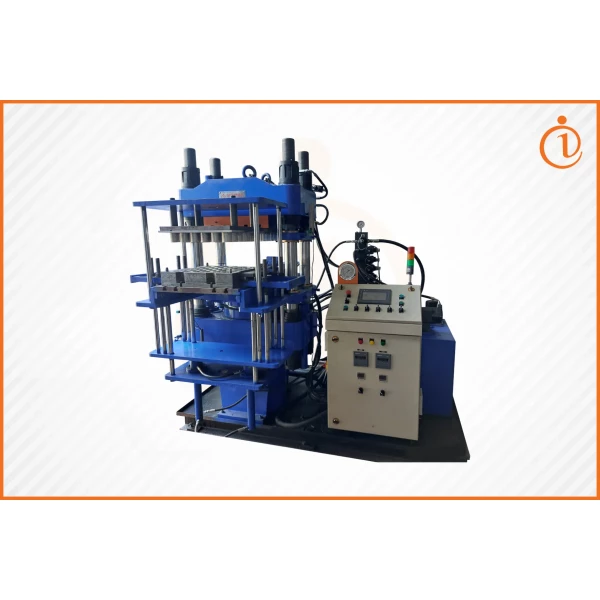

Fully Auto – Single Station
